Syringe Guard

The purpose of this project is to design a syringe attachment in order to decrease the amount of needlestick injuries to health care personnel and patients

Phase 1: Discover

Preliminary sketches for proposed solution

IMG_5842.heic

Phase 2: Design for Manufacture

Screen Shot 2022-11-29 at 11.10.09 PM.png
Syringe Guard Spring Render.png

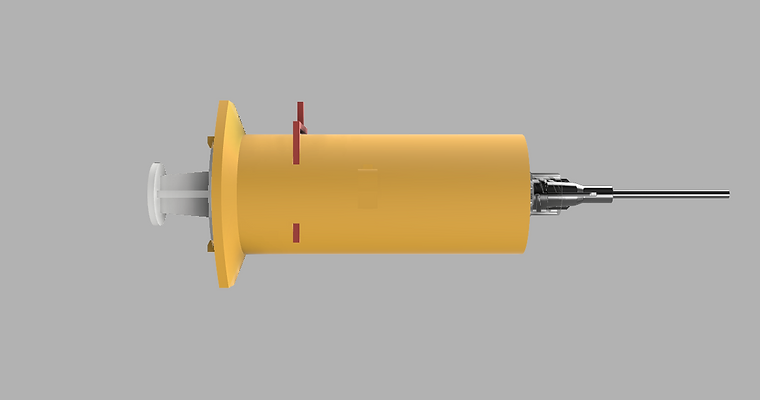

Syringe Guard 5.0 Sideways.png
Syringe Guard 5.0 top view.png
Syringe Guard 5.0 v4.png

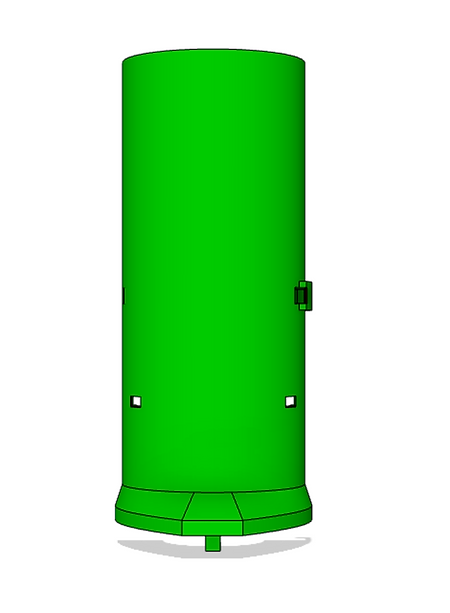

Draft analysis for injection molding of outer shell

Screen Shot 2022-12-01 at 5.18.08 PM.png
Screen Shot 2022-12-01 at 5.18.20 PM.png

Phase 3: Manufacturing

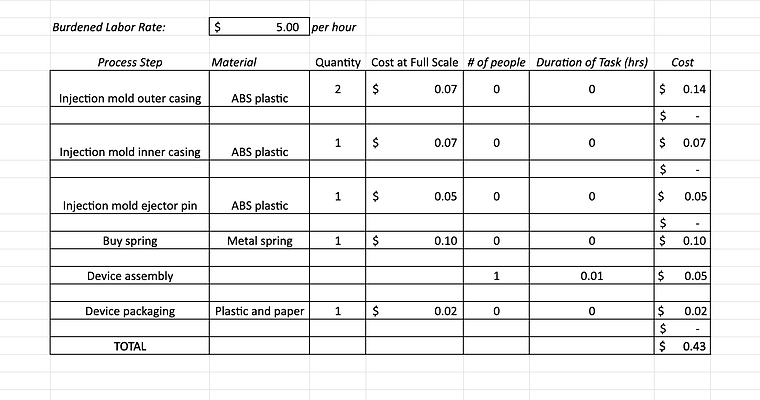

Injection molding cost calculations and full labor, burden, and materials list for syringe guard at a quantity of 1,000,000

Screen Shot 2022-11-29 at 11.54.59 AM.png
Screen Shot 2022-11-30 at 12.37.53 AM.png

Phase 4: Animations and Images
